We are constantly exploring products tailored for the structural steel pipe market.
Here, you will find a unique product line designed specifically for the global market that pursues excellence and quality, aimed at meeting your various needs. Our goal is to become a leading global manufacturer of structural steel pipes, providing every customer with the high-quality products and services they expect.

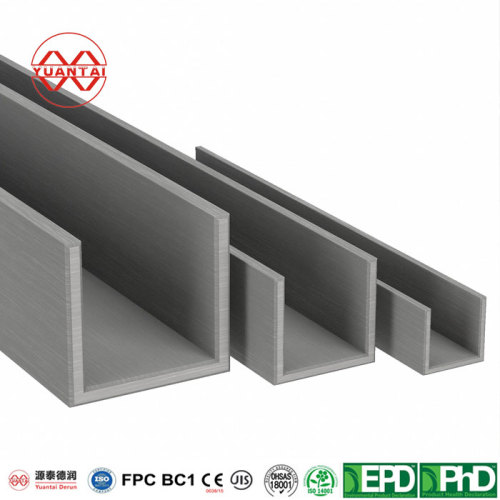

u channel
Rolled , cut and punched to the size you order.
Yuantai Derun supplies steel U channel from 50 x 37 mm up to 400 x 104 mm, in carbon steel grades Q195 through Q355B and equivalent ASTM and EN designations. Hot rolled or cold formed, black or galvanized. We cut to length, punch holes and notch ends before packing, so the channel arrives ready to bolt on site.nt
Sizes We Run
Height 50 mm to 400 mm
Flange width 37 mm to 104 mm
Web thickness 4.5 mm to 12.5 mm, or up to 25 mm on request
Length 6 m or 12 m standard, cut to any length from 1 m to 12 m
Weight 5.44 kg/m at 50 x 37 up to 71.49 kg/m at 400 x 104
If your size sits between two standard profiles, tell us the drawing dimensions and we roll to it.
Steel Grades
Q195, Q215, Q235B, Q345B
20#, 45#
S235JR, S275JR, S355JR
SS400, SM400A, SM400B
ASTM A36
Standards to GB/T 706, ASTM A36, EN 10025 and JIS G3101.
Surface and Finish
Black mill finish for welding and fabrication.
Hot dip galvanized where the channel sits outdoors or in wet service.
Primed or painted to your colour reference.
Where It Goes
Building frames, roof trusses and purlins
Scaffolding and formwork support
Steel racking and storage systems
Solar mounting structures
Vehicle chassis and trailer frames
Mine roadway support and tunnel arches
Cutting and Hole Punching
Channel is supplied to length with square or chamfered ends. Holes can be punched to your pattern, and we mark each bundle by item number so pieces are not mixed on site. For repeat orders the punch pattern is kept on file.
Inspection and Paperwork
Mill Test Certificate (MTC) to EN 10204 3.1 with each heat. Third party inspection by SGS, BV or Intertek on request. ISO and CE documentation available.
Packing
Bundled with steel strapping, marked by size and heat number. Galvanized channel is wrapped for sea freight. Container loading plan supplied on request.
Send the profile size, steel grade, length, quantity and whether holes are needed. We reply with price, weight per bundle and lead time within one working day.
4 results
ViewShowcase
Channel steel is a long strip of steel with a fluted section. It is a carbon structural steel for construction and machinery.
Durable Structural Steel U Channel, perfect for construction projects. We support OEM, ODM, and wholesale partnerships worldwide.
Discover Custom Metal U Channel Solutions from the leading manufacturer in China. OEM, ODM, and wholesale available for your business needs.
Durable U channel steel with excellent load-bearing capacity. Ideal for building frames, supports, and industrial structures. Galvanized options available. Get a quote today!
