Can You Bury Black Iron Gas Pipe Underground? Code Requirements, Corrosion & Protection

Bare black iron or black steel gas pipe should generally not be buried directly in soil without an approved corrosion-protection system. Steel can be used for underground fuel-gas applications, but the pipe, coating, joints, installation method, testing, and protection requirements must comply with the locally adopted fuel-gas code, project specifications, and requirements of the authority having jurisdiction (AHJ).

The main issue is not whether black steel can carry gas. It is external corrosion. When bare steel comes into contact with soil, moisture, dissolved salts, oxygen, and other environmental factors, corrosion can occur, potentially causing localized pitting, wall loss, and eventually loss of pipe integrity.

Important: This article provides general information about steel pipe materials and corrosion protection. Underground fuel-gas piping must be designed, installed, tested, and approved according to applicable local codes, project specifications, and AHJ requirements. Consult a licensed gas contractor or qualified engineer for a specific installation.

n gas-piping discussions, “black iron pipe” commonly refers to ungalvanized carbon steel pipe, often called black steel pipe in industrial and procurement contexts.

Black steel is widely used for above-ground gas piping. However, bare black steel should not normally be placed directly in soil for underground fuel-gas service unless the complete piping system includes an appropriate corrosion-control strategy.

Depending on the applicable code and project requirements, an underground steel gas-piping system may require:

 A factory-applied corrosion-resistant coating or insulating jacket

The exact requirements depend on the local jurisdiction, adopted code edition, system pressure, site conditions, soil environment, and project specification.

In the United States, commonly referenced model fuel-gas codes include the International Fuel Gas Code (IFGC) and NFPA 54, National Fuel Gas Code. Local authorities may adopt these codes with amendments or additional requirements.

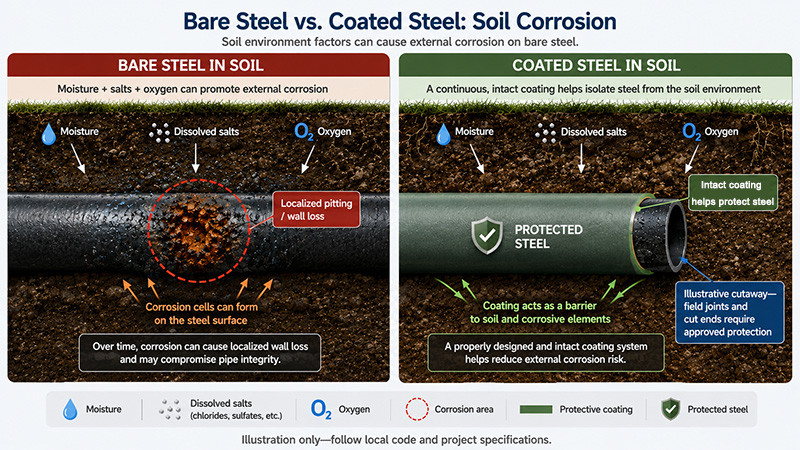

Bare black steel pipe does not have a dedicated external corrosion-protection coating. Once buried, its outside surface may be exposed to moisture, dissolved salts, changing soil chemistry, oxygen, and electrical interference.

These conditions can create electrochemical corrosion cells on the steel surface. Corrosion may begin as localized metal loss and develop into pitting corrosion, which removes material from specific areas rather than uniformly reducing the complete pipe wall.

The severity of corrosion depends on the actual installation environment, including:

Steel pipe can be used underground when the complete system incorporates a suitable corrosion-control strategy and complies with applicable requirements.

The system should be considered as a whole, including pipe material, wall thickness, external coating, field-joint protection, fittings, underground-to-above-ground transitions, installation conditions, testing, inspection, and cathodic protection where applicable.

A high-quality steel pipe can still be vulnerable if its coating is damaged during transport or installation, or if exposed field joints are not properly protected.

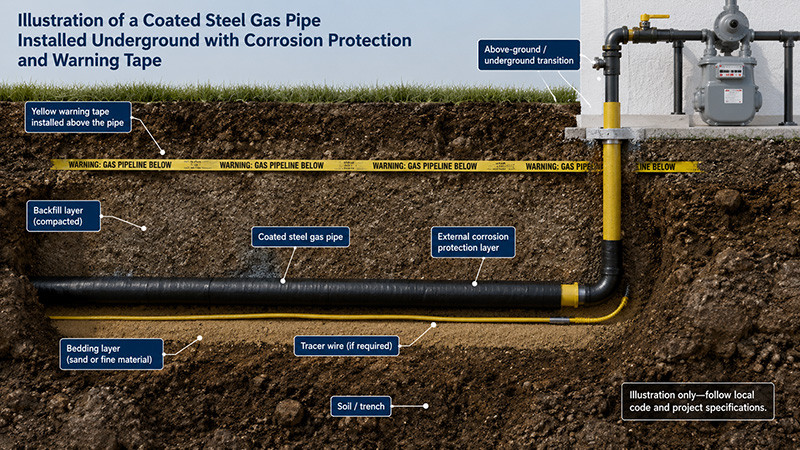

Factory-coated steel pipe uses an external coating or jacket to separate the steel surface from surrounding soil. Depending on the project, the protection system may use polymeric coatings, fusion-bonded epoxy, liquid-applied coatings, multi-layer systems, or other approved materials.

Factory application can provide more consistent surface preparation and coating quality than uncontrolled site application. However, coating integrity must be maintained throughout manufacturing, transportation, handling, joining, installation, and burial.

If a coating is damaged, bare steel may be exposed and become a localized corrosion point. Cut ends, weld areas, fittings, and field joints may therefore require compatible repair or protection methods.

Even when the pipe body is factory coated, field joints, fittings, welds, and cut ends may require additional corrosion protection.

Depending on the coating system, this may involve compatible wrapping materials, heat-shrink sleeves, primers, liquid-applied coatings, or other qualified joint-protection systems. The correct method should follow the coating manufacturer's instructions, applicable code, and project specification.

Ordinary electrical tape, duct tape, or general-purpose adhesive tape should not be assumed to provide suitable underground fuel-gas corrosion protection.

Cathodic protection may also be incorporated into the corrosion-control strategy for buried metallic piping. Depending on the design, this may use sacrificial anodes or impressed-current systems. Where required, cathodic protection can work with an appropriate external coating to provide additional long-term corrosion control.

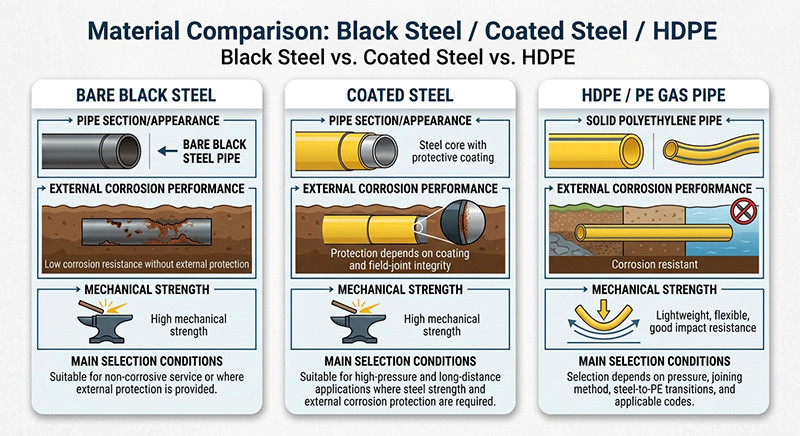

The best underground gas-piping material depends on the complete application—not simply on whether the pipe can physically be buried.

Coated steel may be selected where steel strength, impact resistance, transition compatibility, or connection to existing steel infrastructure is important.

HDPE or PE gas pipe is widely used for underground gas distribution because it does not rust and has strong resistance to many forms of soil corrosion. However, HDPE is not automatically interchangeable with steel.

Its use depends on permitted gas service, operating pressure, temperature, pipe standard, SDR, joining method, transition fittings, mechanical protection, locating requirements, and local code provisions.

Fuel-gas piping requirements vary by jurisdiction. In the United States, local authorities may adopt and amend model codes such as the IFGC and NFPA 54.

For underground metallic gas piping, applicable codes and project specifications may address:

 Approved pipe material and pressure rating

Do not use one generic burial depth, test pressure, or coating type as a universal requirement. The correct approach depends on the locally adopted code, project design, site conditions, and AHJ approval.

Do not assume that galvanized steel automatically becomes suitable for underground fuel-gas service simply because it has a zinc coating.

Galvanizing can provide a degree of corrosion resistance, but underground suitability depends on the applicable code, material compatibility, soil environment, coating condition, installation method, and project approval. Additional corrosion protection may still be required.

Before selecting galvanized steel for buried gas service, confirm the permitted material and corrosion-control requirements with the applicable code, project specification, and AHJ.

For an underground gas or infrastructure project, the purchasing specification should go beyond outside diameter × wall thickness.

Specify the applicable ASTM, EN, API, or project standard, material grade, and required mechanical properties.

Confirm outside diameter, wall thickness, length, end type, straightness, ovality, and dimensional tolerances.

Define the coating type, surface preparation, coating thickness, repair method, field-joint protection, inspection requirements, and cathodic protection where required.

Clarify whether the project uses welded, threaded, flanged, mechanical, or transition connections, along with relevant installation requirements.

Confirm required pressure testing, coating inspection, holiday detection where applicable, visual inspection, Mill Test Certificates, coating records, and third-party inspection documentation.

A clear specification helps prevent a common mistake: ordering the correct steel pipe grade and dimensions while leaving the corrosion-protection system undefined.

Can black iron gas pipe be buried underground? Bare black steel should generally not be installed in direct soil contact without an approved corrosion-protection system.

Steel may be used for underground gas applications when the complete system—including pipe material, external coating, field-joint protection, installation method, testing, and approval—meets applicable code and project requirements.

For buyers and project teams, underground pipe selection should address both structural performance and long-term corrosion control before a purchase order is issued.

Yuantai Derun supplies carbon and structural steel pipe for international infrastructure and engineering projects. Product standards, dimensions, wall thickness, external coating requirements, inspection scope, and material certification can be discussed according to project-specific requirements.

For buried, wet, or corrosive environments, buyers should define the required pipe standard, steel grade, dimensions, corrosion-protection system, end requirements, testing scope, and documentation before procurement. This helps ensure that the steel pipe and corrosion-control system are specified as one complete solution.
