Seamless Square Hollow Section Guide: EN 10210 vs EN 10219 Selection
Quick Answer
Seamless square hollow sections and welded hollow sections are selected according to project requirements rather than one being universally better than the other.
EN 10210 hot-finished hollow sections are commonly chosen for applications requiring high toughness, heavy wall thickness, or demanding structural performance. EN 10219 cold-formed welded hollow sections are widely used in general construction projects where dimensional accuracy, availability, and cost efficiency are important.
The right choice depends on structural loads, design standards, operating conditions, and project budget.
What Is a Seamless Square or Rectangular Hollow Section?

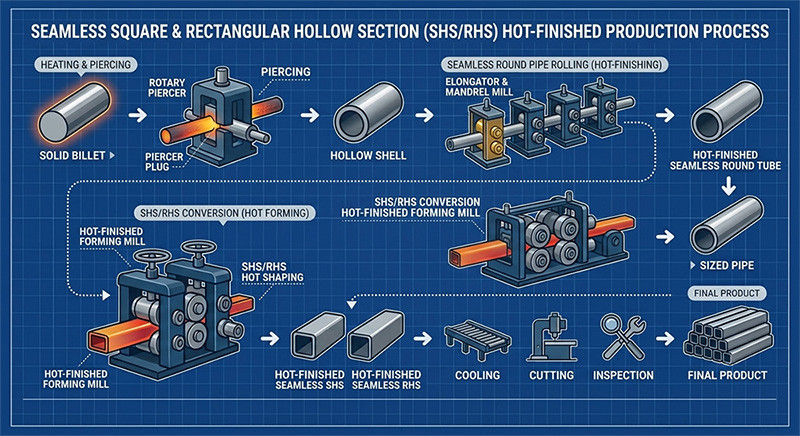

A seamless square hollow section (SHS) or rectangular hollow section (RHS) is produced from a seamless circular steel tube. And through forming and finishing processes that a square or rectangular profile is processed.
Unlike hollow section welded pipes, seamless hollow sections do not contain a longitudinal weld seam. Without it, seamless hollow sections offer more uniform mechanical properties and avoid potential variations associated with welded areas.
Seamless structural hollow sections are commonly supplied according to EN 10210. S275J2H and S355J2H are widely used grades for demanding structural applications. These grades offer good toughness and are suitable for low-temperature environments.
Typical applications include:
-Heavy steel structures
-Industrial equipment frames
-Offshore structures
-Bridge components
-Projects with low-temperature impact requirements
EN 10210 vs EN 10219: Main Differences
Both standards cover structural hollow sections, but they focus on different production methods and requirements.
| Parameter | EN 10210 Hollow Section | EN 10219 Hollow Section |
| Manufacturing Process | Hot-finished process | Cold-formed welded process |
| Typical Production | Seamless or welded | Mainly welded |
| Common Grades | S275J2H, S355J2H | S235JRH, S355J2H |
Main Advantage | Higher toughness and stress-relieved properties | Excellent dimensional accuracy and cost efficiency |
Typical Applications | Heavy structures, demanding environments | Buildings, frames, general steel structures |
EN 10210 is not limited to seamless tubes. The standard covers hot-finished structural hollow sections, including both seamless and welded products.
EN 10219 focuses on cold-formed welded structural hollow sections. These sections are widely used in construction projects due to their efficient production and good dimensional accuracy.
Seamless vs Welded Square and Rectangular Hollow Sections
When Choose Seamless Hollow Sections?
Seamless square and rectangular hollow sections are usually considered when project requirements involve:
Heavy Wall Thickness
For thick-wall structural sections, seamless production can provide stable mechanical performance without concerns related to a longitudinal weld seam.
Low Temperature or Impact Requirements
EN 10210 grades such as S355J2H are often used in cold environments. These grades provide good impact toughness at low temperatures.
Fatigue-Sensitive Structures
Structures with repeated loading may require higher fatigue resistance. Engineers often consider hot-finished hollow sections for these applications.
When Are Welded Hollow Sections More Suitable?
EN 10219 welded square and rectangular hollow sections offer good dimensional accuracy and stable mechanical properties. They are widely used in construction and industrial structures.
They are commonly used for:
-Commercial buildings
-Steel frameworks
-Architectural structures
-Machinery supports
-General fabrication projects
In many structural projects, welded hollow sections meet the required strength requirements. They also offer shorter production cycles and cost advantages.
Quality Requirements and Certification
Regardless of whether a project uses seamless or welded hollow sections, quality control is essential.
Common documentation and inspection requirements include:Regardless of whether a project uses seamless or welded hollow sections, quality control is essential.
Common documentation and inspection requirements include:
EN 10204 3.1 Mill Test Certificate (MTC)
The certificate normally includes:
-Chemical composition
-Mechanical properties
-Heat number traceability
-Test results
Manufacturing Inspection
Typical inspection procedures include:
-Dimensional inspection
-Wall thickness measurement
-Visual inspection
-Non-destructive testing (NDT)
-Tensile testing
-Impact testing when required
Some projects require third-party verification. In these cases, independent inspectors can check the products according to the agreed requirements.
FAQ About Seamless Square Hollow Sections
Q1:What is a seamless square hollow section?
A1:A seamless square hollow section is a structural steel tube made from a seamless round tube. It is formed into a square profile without a longitudinal weld seam. These sections are commonly used in projects requiring consistent mechanical performance.
Q2:Is seamless square hollow section stronger than welded hollow section?
A2:Not always. Both seamless and welded hollow sections can meet structural requirements when they follow the applicable standards.
Seamless sections have no longitudinal weld seam and are often used for applications requiring hot-finished properties. Welded sections are a common choice for general construction because they offer reliable performance and cost advantages.
Q3:Can EN 10219 replace EN 10210?
A3:Sometimes, EN 10219 hollow sections can meet the requirements of a structural project. However, EN 10219 cannot replace EN 10210 when the specification requires hot-finished properties or specific toughness requirements.
Conclusion
The choice between seamless square hollow sections and welded hollow sections depends on the actual project requirements. Strength is only one factor to consider.
EN 10210 hot-finished hollow sections are suitable for projects requiring higher toughness or heavy wall thickness. EN 10219 welded hollow sections are a practical choice for many construction and industrial applications.
The right standard and production method help ensure reliable performance and reasonable project costs.
