ASTM A53 or EN 10219?Choose the Right GP Pipe Standard
ASTM A53 or EN 10219? Choose the Right GP Pipe Standard
Standard selection for Galvanized Pipes (GP Pipes) directly impacts project lifespan and ROI. ASTM A53 is the heavy-duty choice for pressure and fluid systems, typically featuring high-micron Hot-Dip Galvanizing (HDG). EN 10219 is the global standard for structural hollow sections of RHS & SHS like solar mounting, often paired with cost-effective Z275 pre-galvanized coatings. Misidentifying the thread type or the "thin-walling" tolerance limits can lead to catastrophic onsite failures or budget blowouts.
Recentl we sat across from a procurement lead in Dubai who was frustrated. He had a quote for ASTM A53 pipes that was 20% cheaper than ours. After a quick look, I found the "trap": the competitor was offering a 20-micron pre-galvanized pipe labeled as A53, which technically requires a much heavier 80-micron hot-dip coating.
In the steel export business, "Galvanized" is a dangerously broad term. If you don't know the "alphabet soup" of standards, you're either overpaying for protection you don't need or risking a structural collapse. Here is the ground-level breakdown.
The Strength Gap: It’s Not Just "Steel"
The steel grade dictates how much load your structure can handle before it starts to buckle.
EN 10219 (The Structural Specialist): This is our "bread and butter" for solar mounting and scaffolding. If you see S355J2H, you’re getting high yield strength (355 MPa). It’s designed to be cold-formed and welded without losing integrity.
ASTM A53 (The Fluid Generalist): Usually Grade B. It’s the "vanilla" of the pipe world—versatile, reliable for low-pressure steam or air, but often overkill for a simple fence or warehouse frame.
EN 10255 (The Plumbing Veteran): Formerly BS 1387. If you’re threading pipes for water or gas, this is the one. Its chemistry is optimized for threading, not for heavy structural loads.
The Zinc Coating "Game": 275g/m² vs. Hot-Dip
This is where 80% of buyers get burned.
Z275 Pre-galvanized: The "Z275" means 275 grams of zinc per square meter across both sides. That’s roughly 20 microns per side. It looks beautiful—smooth, shiny, and consistent. It’s perfect for indoor structures or dry climates.
ASTM A53 / EN 10255 Hot-Dip (HDG): These pipes are dunked into a molten zinc bath after fabrication. The coating is thick (usually 550g/m² or 80+ microns). It’s ugly, dull, and sometimes has zinc "tears" at the ends, but it will survive a decade in a salty coastal environment where Z275 would rust in two years.
Dimensional Tolerances: Where the "Thin-Walling" Happens
In the factory, we call it "shaving the wall."
| Standard | OD Tolerance | Wall Thickness (WT) Tolerance | Practical Notes (Factory Insight) |
| ASTM A53 | Typically ±1% (for NPS ≥ 2) | Max. -12.5% at any point | Strict control. If nominal WT is 4.0 mm, minimum cannot be less than 3.5 mm at any point. Widely used for pressure and structural applications. |
| EN 10219 | Varies by size and shape (round tubes may have ±0.5 mm or ±1%) | ±10% (t ≤ 5 mm); ±8% (t > 5 mm) | More flexible for structural use. Always confirm whether pricing is based on theoretical weight or actual weight. |
EN 10255 | Defined by size and weight class | Light: -8%; Medium/Heavy: -12.5% | Classified by weight series. Designed to ensure sufficient thickness for threading and mechanical performance. |
JIS G3442 | Defined by fixed values depending on OD (e.g. ±0.5 mm for small sizes) | Typically follows fixed deviation values depending on size | Tolerance system based on size tables. Practical performance is similar to international standards in most applications. |

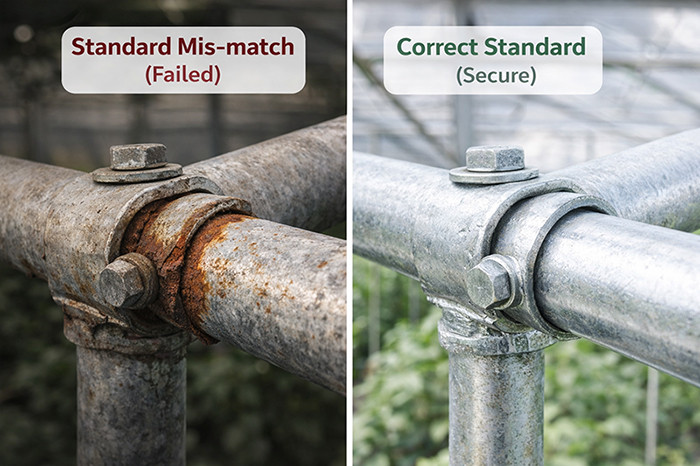

Real-World Case: The Greenhouse Disaster
In our 20 years of export experience, we often see a recurring 'Greenhouse Trap', aConsider a typical scenario in high-humidity regions like South America bought "Galvanized Pipes" for a massive greenhouse. They went with the cheapest quote. Six months in, the threads started leaking and the frames showed white rust.
What went wrong? They used EN 10219 (Structural) pipes for a system that needed EN 10255 (Threading). The wall was too thin for the threads, and the "Z120" (light zinc) coating couldn't handle the humidity. We helped them swap to EN 10255 Medium Series with HDG coating. It cost 15% more upfront but saved the entire $2M crop from a structural collapse.
Can I use NPT fittings on an EN 10255 pipe?
Technically, no. EN 10255 uses BSPT (British Standard Pipe Thread). NPT (American) has a different thread angle. Force them together, and you’ll be relyling on a lot of Teflon tape and luck.
Why does my pipe have "White Rust" (Wet Storage Stain)?
White rust isn't a "failed" pipe; it's zinc reacting to moisture in a tight shipping container. We prevent this by using Chromate Passivation and industrial desiccants in every container. If you see it, a light wire brush and some zinc-rich paint usually fix the surface.
Is "Pre-galvanized" weldable?
Yes, but you burn off the zinc at the weld seam. We always recommend a Cold Galv Spray (95% zinc dust) to repair the "scar" immediately after welding to prevent localized rusting.
